European Standard Pallet Rack
$0.00

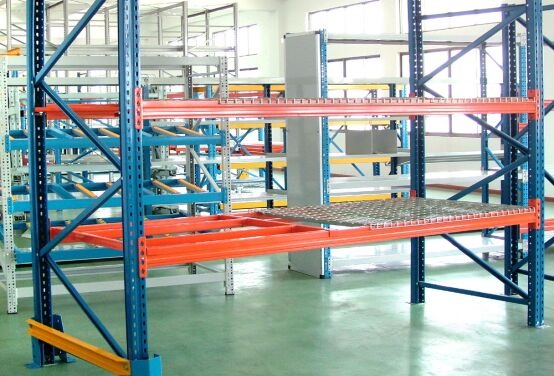

European standard pallet rack is a material handling storage aid system that provides efficient use of storage space for palletized loads. It is the most common pallet racking system in use today. Pallet racking allows the storage of materials in horizontal rows with multiple levels. Welfor carries a wide range of European standard pallet rack components and can design a selective racking system to tailor fit your specific space and budgetary requirements. Our selective racking systems are compatible with all types and sizes of pallets and may be used with any type of handling system. Welfor recommends European standard pallet rack for clients looking to implement an inexpensive storage system with a high throughput rate and FIFO inventory management for many SKUs and low pallet quantities.
| European standard pallet rack suits · Low volumes (up to 3000 pallets) · Large range of Stock Keeping Units (SKU) · Low land cost ØDirect access to every pallet in storage · Multiple access (more than one truck in same aisle) | Advantage · Your desired storage density · The amount of floor space and your building height · The placement of your building doors and columns · Inventory accessibility requirements · Inventory rotation requirements · Item/load size and weight · Optimal storage design · Cost of materials and installation |

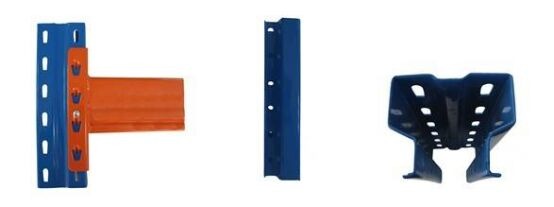

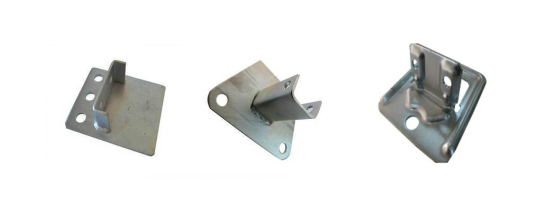

| Baseplates According to different the height of racking system established, some special base plates as suggested, all of them are galvanized which have good anti-corrosion function. | Upright frame European standard pallet rack upright has optimum profile with 50mm hole pitch for better capacity and space utilization. The uprights are made from high quality steel and are very rigid. These are then bolted from the stable frame using horizontal and diagonal bracing. Different kinds of base plates ensure loads even distributed on the floor |
 |  |
Beam

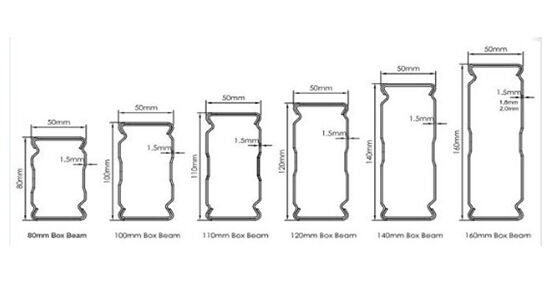

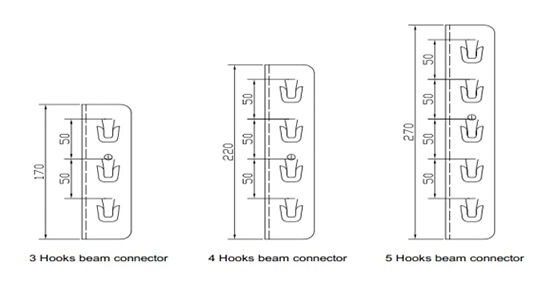

| Beam connectors are designed to be available for use is: 3-5 hooks, depending on the beam section height and beam loading. | The beam uses double "C" combination, closed box structure, and ensures goods performance resistance to torque, full protection against corrosion, fully bring into play the advantage of steel strength, the maximum bearing capacity of unit rack may reach over 4000KG |
 |  |
