Teardrop Pallet Rack

$0.00

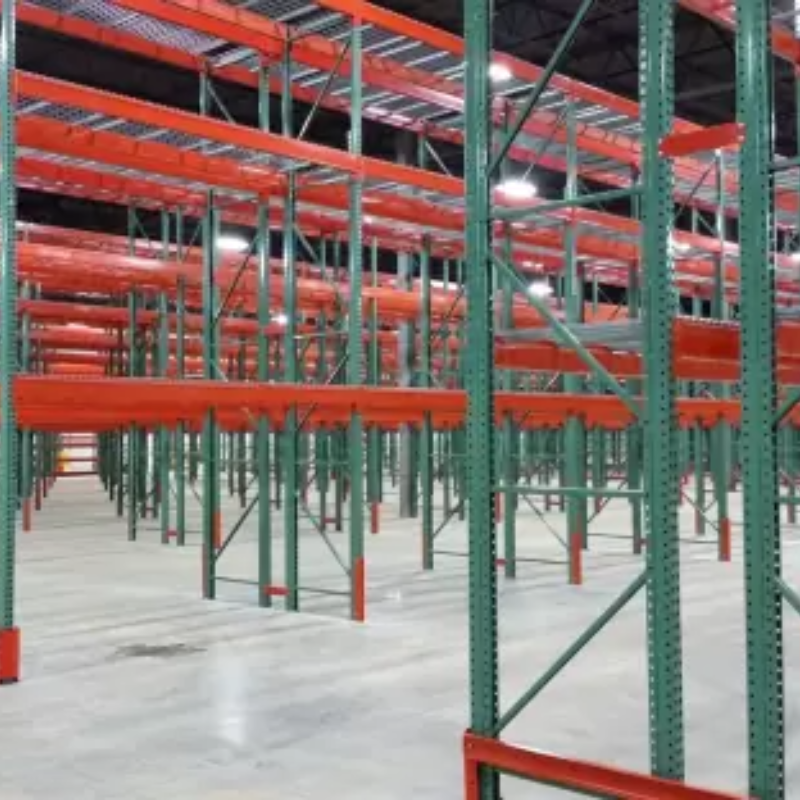

Maximize warehouse space with durable teardrop pallet racks. Our heavy-duty, adjustable racking solutions are perfect for efficient storage in warehouses and industrial settings. Teardrop racks offer flexible configuration options to accommodate various pallet sizes and maximize storage capacity. Save space and enhance organization with high-quality, customizable pallet racking systems.

Features Bolted and Welded Upright Frame

Mainly consist of upright frame, beam and related accessories, like upright protector, support bar, wire mesh decking and etc

It is popular due to its slide-in teardrop shaped punched hole design, to lock the horizontal beams to the vertical uprights quickly and easy assembly

Connection of the upright and beam is by wedging, equipped with safety pin

Holes pitch: 50.8mm

Teardrop Upright Frames are consisted of rolled uprights with horizontal and diagonal bracing, including standard footplates.

1) C type Section and Omega type Section are available

2) Frame Bolted or Welded

3) Steel thickness is 15ga, 14ga , 13ga, 12ga

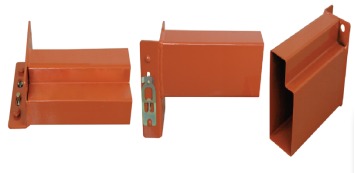

Step beam

Teardrop Step Beams are made of 14 ga, 15ga and 16 ga tubular steel and include a factory installed auto lock Safety Clip which will make a clicking sound once the beam is secure and prevents it from dislodging. Full fillet welds add to the beam's strength and durability Safety orange beams allow lift truck drivers easy recognition of the beam level at high elevations.  Safety orange color aids in safe loading and unloading of racks.

1) Spring automatic safety locks

2) Thickness of 16ga, 15ga and 14ga are available

3) Special 3 or 4 rivets beam brackets





BaseplateRow spacer

Welfor have Both Standard Foot Plate for East American Market and Seismic Foot Plate for West American Market.

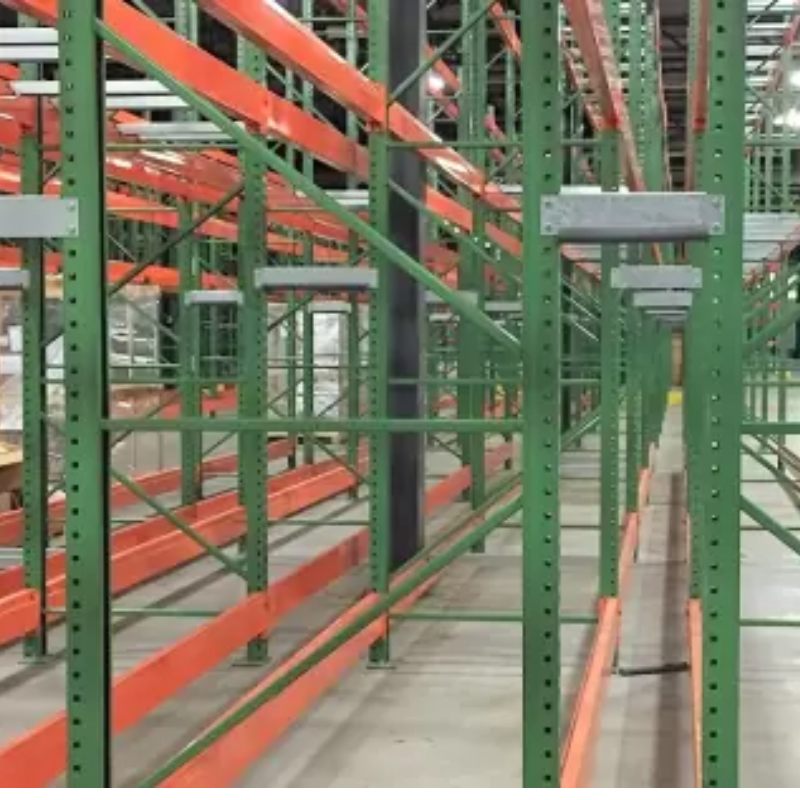

Create distance between each of your pallet rack bays. This allows you to keep all of the rows of pallet rack organized, in-line, and spaced evenly. The quantity of row spacers needed depends on the height of the uprights.
